Qianli iSocket Motherboard Layered Test Frame For iPhone X

SKU: 8286E6440E

Qianli iSocket Motherboard Layered Test Frame For iPhone X

Qianli iSocket Motherboard Layered Test Frame For iPhone X

Fix-X iSocket Layer Logic Motherboard Test Fixture for iPhone X PCB Repair.

Features:
Easy to use, connect the upper and lower motherboards for testing/repair, avoid problems after installation, increase maintenance speed.
Check-in advance to avoid duplicate disassembling and breaking the motherboard.
Small size, easy to carry.

Operation:
Prepare
Power On/Off Cable
Power Line
LCD Test Cable
Screen
Main Board
Decomposition iPhone X Middle Layer simply equipped the test fixture.

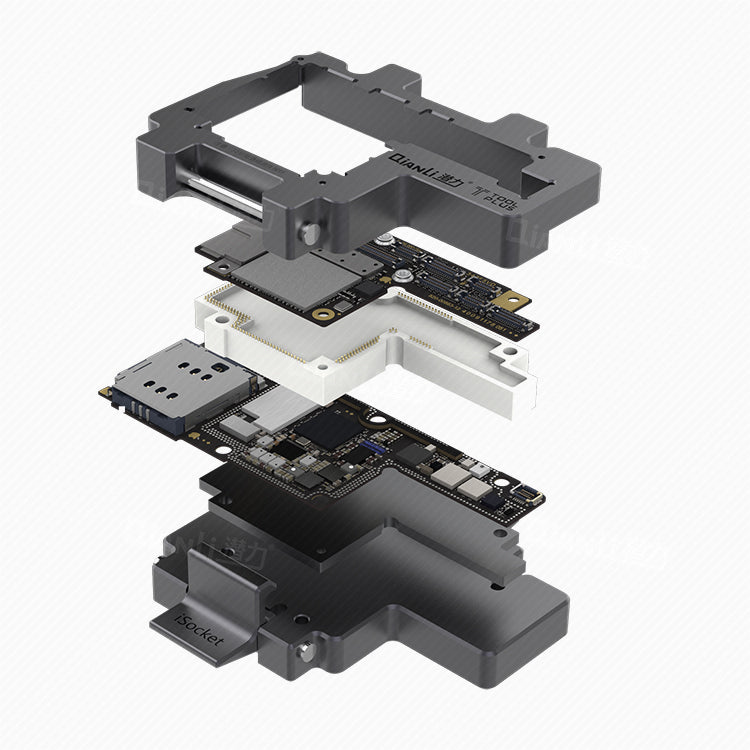

Install: Put in the lower main board, put on the pinboard, put the top board in, and then cover the test rack.
The first way to connect the screen line, boot, power cord or battery test ink success or not.
The second way is to connect the end plug on the base of the first method to implement the brush function.

Brand: Qianli, Universal,
